BALL JOINT
BL
Specification:
- Sliding contact surfaces
Steel vs. Zinc based alloy steel
- Materials
Thread stud is made of carbon steel, body is made of Zinc based alloy steel,
seal is made of rubber
- Treatment
Stud is black oxide coated or Zinc plated, body is Zinc plated
- Features of structure

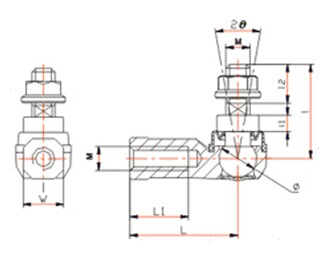

The unit consists of a body and thread stud, assembled in 90 degree position.
With lubricant inside and covered with a rubber seal
- Properties
Self-alignment, easy installation
- Application
Pneumatic components, bus doors, packaging equipments, agriculture
equipments etc.
